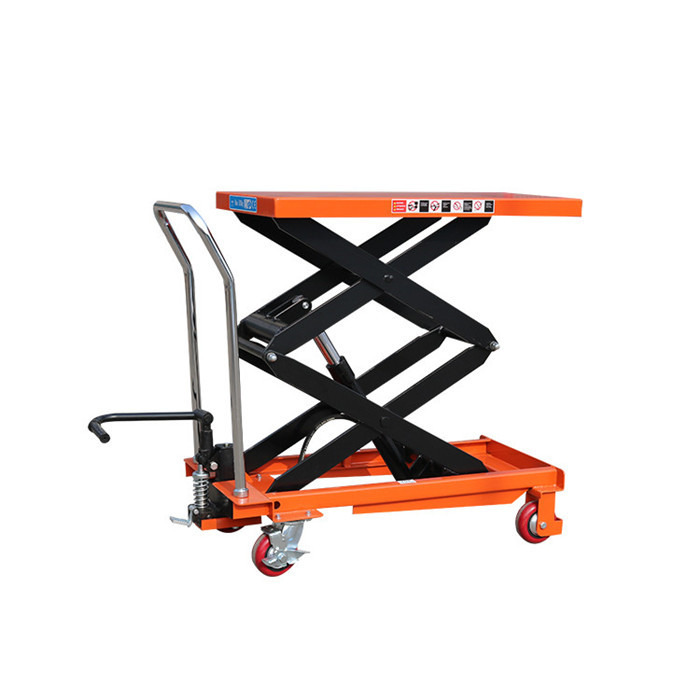

Manual hydraulic lift table is made of high strength steel, internal safety valve, fully sealed oil cylinder, manual control of hydraulic system lifting, which has reasonable design and structure, safe and stable, reliable, easy to operate characteristics. Equipped with nylon guide wheel to save the operator's physical strength, and can protect the load wheel and pallet load wheel. Unique hydraulic pump design, simple pump for pipeline loading and unloading operation to maintain an ideal height and design; The unique ergonomic design makes the operator comfortable to operate.
The main products are divided into: manual hydraulic lift table, electric hydraulic lift table.
Manual hydraulic conveyance platform is novel in design, reasonable in structure and convenient in use. It is suitable for loading, unloading, handling and stacking in factories, workshops, warehouses and oil depots. It is especially suitable for chemical industry, food workshop to pour the material or the use of ingredients, and can load and unload the heavy objects of cars, stacking, and hydraulic drum truck operations. It can greatly improve the work efficiency, reduce the labor intensity of workers, and also it can be adapted to loading and unloading, lifting heavy objects, is a new kind of ideal multipurpose landing handling machinery.
Specification
| Model | Platform Size L*W*H | Lifting Range | Lifting Capacity |
| PT150 | 700*450*35 | 210-720mm | 150kg |
| PT300 | 810*500*50 | 280-900mm | 300kg |
| PT500 | 810*500*50 | 280-900mm | 500kg |
| PT1000 | 1000*510*55 | 415-1000mm | 1000kg |
| PTS150 | 700*450*35 | 305-1260mm | 150kg |
| PTS350 | 905*500*50 | 350-1300mm | 350kg |
| PTS500 | 905*500*50 | 360-1500mm | 500kg |
| PTS800 | 1200*610*58 | 450-1500mm | 800kg |
| PTS1000 | 1200*610*80 | 500-1700mm | 1000kg |
| PTS350 | 900*700*50 | 350-1580mm | 350kg |
| PTD500 | 1600*610*80 | 280-900mm | 500kg |
| PTD1000 | 1200*610*80 | 380-1000mm | 1000kg |
| PTD1500 | 1200*610*80 | 380-1000mm | 1500kg |
| PTD2000 | 1200*610*80 | 380-1000mm | 2000kg |
Parts Shown
Factory Profile Of Symmen
DFHOISTS is a company specialized in the design and production of new lifting equipment, mainly engaged in the production and sales of bridge, gantry cranes and light lifting equipment. With the deteriorating natural environment in the world, the global industry is developing towards low energy consumption and low emissions. The lifting equipment is also constantly being upgraded. DFHOIST is based on crane optimization design, PLC and variable frequency drive technology. Our cranes are small in size, with light weight, low energy consumption, good maintenance-free performance and high work continuity. DFHOIST lifting equipment is designed according to FEM and ISO standards, and has passed CE, SGS, BV certification, ISO 9001:2015 quality system certification and ISO 14001:2015 environmental quality system certification.
