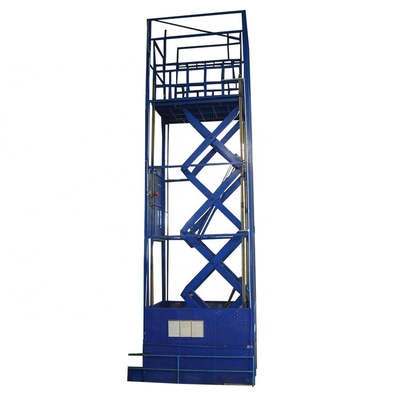

Wall-mounted vertical hydraulic goods lift for warehouses or construction , maintenance
Cargo lift is used for transfer cargo between different floors. Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operation.
Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
Model |
Capacity |
Lifting height |
Platform size |
Pump station power |
Working voltage |
CL1-3 |
1ton |
3m |
2000*2500mm |
3kw |
380v 3phase 50hz |
Cl2-6 |
2ton |
6m |
2200*2800mm |
4kw |
380v 3phase 50hz |
Cl3-5 |
3ton |
5m |
2500*3000mm |
4kw |
380v 3phase 50hz |
Cl5-3 |
5ton |
3m |
3000*3500mm |
7.5kw |
380v 3phase 50hz |
Cl8-6 |
8ton |
6m |
2800*3000mm |
11kw |
380v 3phase 50hz |
Cl10-6 |
10ton |
6m |
3500*5000mm |
15kw |
380v 3phase 50hz |
All above accept customized according to customer's requirements |
ITEMS |
PARAMETERS |
Power Supply |
380V,3phase,50HZ |
Motor Power |
3KW/AC |
Platform Size |
2830mm*2760mm |
Load Capacity |
2000kg |
Lifting Speed |
3-5m/min |
Min Height(Pit depth) |
350mm |
Running Mode |
Jogging control |
Drive System |
Hydraulic driven |
Installation Mode |
No pit |
Extron Control Device |
The panel boxes are placed on the neighboring wall of the above/below floor. |
Installed in the pit or the ground floor to convey the goods from one working level to another. indoor or outdoor is ok. With a heavy duty, safe and reliable.
The lift could be controlled at any floor. Control panels are available at the designated floors and one is on the lift platforms.
When choosing your lift, choose a manufacturer you can trust. All of FORU's products meet the highest quality and safety standards.
Foru Enterprisre Limited and branch Shandong Foru Tech Co.,Ltd,Foru Enterprise Limited is located in Jinan, China and was founded in 2000. Our R&D team, whose members have explored, studied and developed construction machinery for 16 years, specializing in the hydraulic lift platform.
When you have an access need – whether it’s for a home or for a warehouse or for a public facility – Foru Lift can help you. Our comprehensive offering includes platform lifts, scissor lifts, goods lift, cargo lift, wheelchair lift, boom lift, trailer boom lit, dock ramp, disabled lifts, loading ramp, through floor lifts, home elevators, passenger lifts, portable wheelchair lifts and goods lifts, etc. We also offer a complete lift servicing, repair service.
If you require a full project management service, you can
rest assured you are in capable hands with Foru lift. Our multi-skilled staff can undertake all your surveying, preparatory and installation works, and we are always there to provide you with that all-important after-sales support.
1) Q: What's the MOQ, and how much discount ?
A: MOQ is one set, above 2 sets discount will be 3%
2) Q: Provide customize machine Yes or No?
A: Yes. We can provide customize machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. FORU is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products..
