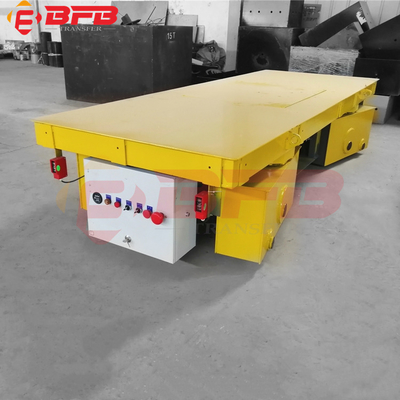

The electric trackless transfer cart consist of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and so on.All the emergency-stop button electrical transfer carriage are equipped with warning alarm and security detection apparatus, and the alarm would ring and the carriage would stop immediately if there was any obstacle or pedestrian in the running path of the trackless cart. Also, we will provide intelligent automatic rapid charger with the trackless cart. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions.
Model | BWP-2T | BWP-20T | BWP-50T | BWP-80T | BWP-100T |
Rated load (T) | 2 | 20 | 50 | 80 | 100 |
Table sice(L*W*H)m | 2*1.5*0.45 | 2.4*2.2*0.6 | 5*2.5*0.8 | 6.5*2.8*0.95 | 6.6*3*1.2 |
Wheel Base (mm) | 1080 | 1650 | 2000 | 1950 | 2000 |
Wheel Diameter(mm) | Φ250 | Φ400 | Φ600 | Φ600 | Φ600 |
Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 2*1.2 | 2*4.5 | 2*7.5 | 30 | 40 |
Battery Capacity(Ah) | 250 | 400 | 500 | 800 | 1000 |
Battery Voltage(V) | 24 | 48 | 72 | 72 | 72 |
Running Time When Full Load | 4 | 4 | 4 | 4 | 4 |
Running Distance for one Charge(Km) | 6.5 | 4.8 | 4 | 3.6 | 3.2 |
Max Wheel Load (KN) | 14.4 | 77.7 | 174 | 185 | 190 |
Reference Wight(T) | 2.3 | 5.9 | 8 | 14.6 | 26.8 |
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Handle remote control operation is simple and convenient
4) Running in a high automatization and intellectualization,no pollution
5) No rail transfer, handling more convenient
These points we need to learn:
1.The load capacity of the transfer cart is ton.
2.The table size is mm (L) * mm (W)* mm (H).
3.The voltage is V, HZ, 3 phase.
4.The running time is hours per day.
5.The running distance is m per time.
6.The transfer cart runs on the rails or common floor?
7.Whether exist turning?
8.Whether has other special requirement?
You can copy the above options and click here to select your specific requirement for the transfer cart to send us.And then the proper solution and price will be sent to you.
