These 50ton electric transfer vehicle electric transfer cart for coachwork dies handling have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer carts are very useful to bring the heavy loads where overhead cranes cannot arrive.

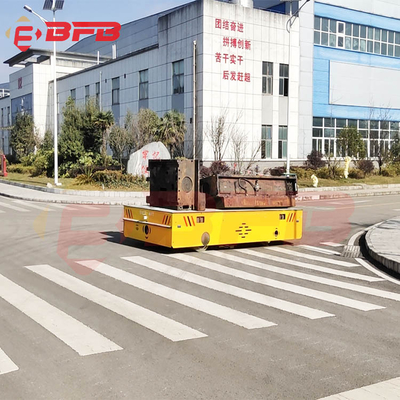

50ton electric transfer vehicle electric transfer cart for coachwork dies handling
The features as following:
1. The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
2. The trackless transfer car is very flexible since it can move freely around the plant as indoor as outdoor.
3. It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
4. Easy operation make transfer car perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.
5. Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.25 ton electric material flat trolley transfer cart for cement plant
Modle | BWP-2T | BWP-10T | BWP-30T | BWP-50T | BWP-80T | BWP-100T | |||||
Table Size (m) | 2.0*1.5*0.45 | 2.3*2.0*0.55 | 3.5*2.2*0.7 | 5.5*2.6*0.8 | 6.5*2.8*0.95 | 6.6*3.0*1.2 | |||||
Power | Maintenance Free Battery | ||||||||||
Wheel Base | 1080mm | 1650mm | 1650mm | 2000mm | 1950mm | 2000mm | |||||
Wheel Dia. | 250mm | 350mm | 450mm | 600mm | 600mm | 600mm | |||||
Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | |||||
Motor Power | 2*1.2kw | 2*2.2kw | 2*5.5kw | 2*7.5kw | 30kw | 40kw | |||||
Battery Capacity | 250Ah | 250Ah | 450Ah | 500Ah | 800Ah | 1000Ah | |||||
Battery Volatge | 24v | 48v | 48v | 48v | 72v | 72v | |||||
Max Wheel Load | 14.4Kn | 42.6Kn | 110.4Kn | 174Kn | 185Kn | 190Kn | |||||
Reference weight | 2.3t | 4.2t | 6.8t | 8t | 14.6t | 26.8t | |||||
Remark: the technical parameter of the trackless transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time.50ton electric transfer vehicle electric transfer cart for coachwork dies handling
Attend The China-Dubai Trade Fair In 2018
Trackless Transfer Cart Rail Transfer Cart Coil Transfer Cart Ladle Transfer Cart
99.8% Response Rate 98.6% Response Rate 95.3% Response Rate 90.2% Response Rate
These points we need to learn:
1.The load capacity of the transfer cart is ton.
2.The table size is mm (L) * mm (W)* mm (H).
3.The voltage is V, HZ, 3 phase.
4.The running time is hours per day.
5.The running distance is m per time.
6.The transfer cart runs on the rails or common floor?
7.Whether exist turning?
8.Whether has other special requirement?
You can copy the above options and click here to select your specific requirement for the transfer cart to send us.And then the proper solution and price will be sent to you.
