Storage warehouse / heavy duty sliding table 10T industry field large wire rail carry bogie for sale

1.0 Sets
MOQ
$4,000.00(1 - 4 Sets) $3,500.00(>=5 Sets)
Price
Storage warehouse / heavy duty sliding table 10T industry field large wire rail carry bogie for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: None
Warranty: 1 Year, 12 Months
Product Type: KPC
Color: Red /Yellow /Blue /Customized
Application: Storage Warehouse/Industry Field
Capacity: 1T ----- 300T
Running Time: No Limited
Running Distance: 30m
Certificates: CE ISO SGS
Material: High Grade Steel Q235
Running Speed: 0-20m/min
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
After-sales Service Provided: Field Maintenance And Repair Service
Basic Infomation
Certification: CE ISO SGS
Payment & Shipping Terms
Packaging Details: The whole bogie will be packed by the tarp, the parts will be packed by polywood case.
Supply Ability: 600 Set/Sets per Year sliding wire power rail carry bogie manufacturer since 2003.
Product Description

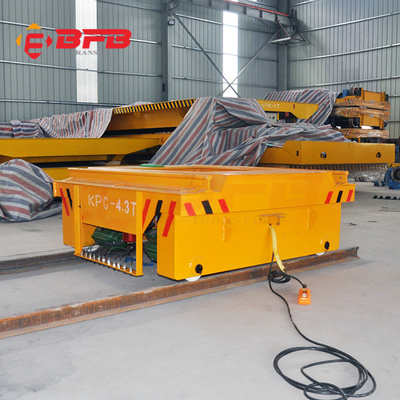

Large table 10T heavy duty sliding wire power rail carry bogie for sale
The KPC series’ slag ladle handling carts are powered by the sliding line. The operation system is low voltage 36V power. The hydraulic lifting device can be installed on the rail flat carts. This series Sliding wire powered slag ladle handling carts are suitable to used in the bad environment, such as high temperature condition. Because of its simple structure, low cost and not so strict requirement on the construction of the railway, it is the first choice for the petrochemical workshops. It can running on the straight,“s” or arc-shaped railways rails, when the carts handling materials to warehouse, transferring materials or equipment between workshops. Our BEFANBY company is the professional manufacturer of Industry electric flat cart with more than 15 years experience in designing and producing,and we have gets CE,ISO,SASO,SGS certificate for this kind AC sliding line powered transfer bogie.


Working Principal-- sliding wire power rail carry bogie
The KPC series Sliding wire powered slag ladle handling car's working principle is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground along the wall. It contacts AC 380V sliding wire directly into the AC electrical control system of the transfer cart to let it start, stop, go forward and backward and so on. The cart gets power from the slider of the safe sliding line which is moved by the cart's running.


Advantages--10T heavy duty rail bogie
  • Anti-explosion and Anti-high temperature;
  • The slag ladle handling cart high temperature proof can Apply to various occasions;
  • Simple structure, low cost;
  • The Sliding wire powered slag ladle handling cart has no strict requirement for the construction of the railway;
  • No limit of running and working time;
  • Safe and convenient operation for there is no wire outside the car;
  • Adjustable speed;
  • TheSliding wire powered slag ladle handling cart high temperature proof Can running on the straight, “s” or arc-shaped railways rails;
  • The hydraulic lifting device can be installed .

Application--large table 10T rail bogie
As the professional manufacturer of Industry electric flat cart ,our Sliding wire powered slag ladle handling cart high temperature proof is suitable for various industries,steel mill, handling grain, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc. Paper roll plant: transfer paper coil, Painting shops, transfer work-piece into the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc. agricultural machinery electric cart is composed of Car frame, wheel, sliding wire,gear reducer, motor,electrical control,etc. This series transfer cart is suitable conditions of short running distance( ≤50m ), high using frequency, low height and assemble line works.
Parameters--sliding wire power rail carry bogie
Model
KPC-2TKPC-10TKPC-20TKPC-30TKPC-50TKPC-63TKPC-100TKPC-150T
Rated load (T)21020305063100150
Table sizelength(L)200036004000450040005600650010000
Width(W)15002000220022002500250028003000
Height(H)4505005506006507508501200
Wheel Base (mm)12002600320028004200430049007000
Rail Inner Gauge (mm)12001435143514351435143520002000
Wheel Diameter(mm)Φ270Φ300Φ350Φ350Φ500Φ600Φ600Φ600
Wheel Quantity44444448
Ground Clearance (mm)5050505050757575
Running speed (min)0-250-250-200-200-200-200-200-18
Motor Power (Kw)0.81.52.545.57.51115
Max Wheel Load (KN)14.442.677.7110.4174221.4343.8265.2
Reference Weight (t)2.33.83.86.37.610.313.926
Recommended Rail ModelP15P18P24P38P43P50QU100QU100
Packing&Delivery

About Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Certificates
Our Customers
Our products have been exported to many countries such as Australia,Thailand,Syria,South Africa,Saudi Aribia,Germany,India,Turkey and so on.

Our Products
Our products include rail transfer cart, trackless transfer car, traverse, transfer table, turnplate, electric hoist, electric winch, gantry crane, overhead crane etc.All of our products accord with machinery industrial standard JB/T61 27-92. Carts are mounted on steel rail for shuttling along a fixed path. They can be divided in many different types as shown below:
  • BWP series Trackless Cart is powered by the storage battery. All the Trackless Cart are equipped with warning alarm and security detection apparatus and the Running distance is unlimited.
  • KPT type is powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
  • KPJ type is powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.
  • KPX type is powered by the storage battery. Without the cable,this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially,the price and the life span of the battery is also an important issue.
  • KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.
  • KPD/KPDZ type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type;the system is also more complicated and expensive. Often customers are unsure as to what type of transfer cart will best serve their needs. Spending a few minutes now discussing the needs of your application could save you dollars in the future.

    If you need other type of transfer cart, please tell us, we will be pleased to provide further assistance!
