Home /Products/Material Handling Turntable/Food Tin Can Sorter Machine Rotary High Speed ​​Bottle Feeding Turntable Unscrambler for Filling and Capping Machine

Food Tin Can Sorter Machine Rotary High Speed ​​Bottle Feeding Turntable Unscrambler for Filling and Capping Machine

1 Set
MOQ
$12,000.00(>=1 Sets)
Price
Food Tin Can Sorter Machine Rotary High Speed ​​Bottle Feeding Turntable Unscrambler for Filling and Capping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Other
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location: Egypt, Canada, United Kingdom, Italy, France, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzs
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type: Bottles
Packaging Material: Plastic, Glass
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 220V/380V
Power: 1.5KW
Weight: 1500KG
Dimension(L*W*H): 1200*1100*1300mm
Key Selling Points: Easy To Operate
Product Name: Semi Automatic Bottle Unscrambler Machine
Keyword: Bottle Unscrambler Machine
Material: 304 Stainless Steel
Suitable Product: Round, Square, Flat, Ellipse Plastic Bottles Etc
Operation: PLC
Function: Bottle Feeding Machine
Advantage: Save Workers
Structure: Transmission Roller Chain
Composition: Beverage Processing Machine
Process: Mild Processing
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, United Kingdom, United States, France, Germany, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan
After-sales Service Provided: Free Spare Parts
Certification: CE; ISO
Basic Infomation
Certification: CE; ISO
Payment & Shipping Terms
Packaging Details: Standard Export Packaging. Wooden Case Outside , PE Film Inside. Semi Automatic Bottle Unscrambler Machine
Supply Ability: 50 Set/Sets per Year Semi Automatic Bottle Unscrambler Machine
Product Description
Product Description
High Speed Tin Can Sorter Machine Rotary Bottle Feeding Turntable Unscrambler
for Filling and Capping Machine

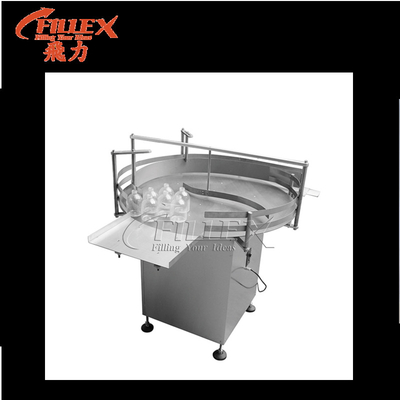

The rotary feeding turntable provides a simple method to orient bottles at the start of the semi-automated or fully automated liquid filling and capping process. Rotary turntable speed is easily adjusted to synchronize with conveyor, liquid filler or capper speeds to provide smooth product container handling.

The Unscrambler rotary turn table is made from polished 316L stainless steel rails and an hard-coat, anodized aluminum top with fully-enclosed sides and adjustable leveling feet. A heavy duty motor powers the table, operated by an On/Off toggle switch and potentiometer to control turn table rotation speed. The turn table comes complete with appropriate rails and fitments to accommodate product containers.

Application:
It can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food and chemical industries etc.
1) Suits for a variety of round bottle, square bottle, flat bottle and the other bottle.
2) It is mainly used for the pharmaceutical industry, health care products industry, food industry and related industries.
3) This equipment is made accord with GMP requirements.


Advantages:

1) It has simple structure and the fountions of tidying bottle and buffering, output bottle is fast and steady.
2) It is made of the 304 stainless steel,,complying the requirement of GMP.
3) Very easy and convenient to operate,stable performance.
4) We can make "from left to right" machine, also can make "from right to left" machine, so that easy to connect your production line.

Features:

1 No replacement parts, suitable for many size of empty glass bottle and pop can, is the ideal supplementary production line equipment
2 Adopts the frequency changer, speed adjustable as customer’s requirement through the panel.
3 Be able to connect to the complete filling production line.
4 Adopts the high quality of stainless steel 304 material, meet with the food grade, has long lifespan.
5 Easy structure and convenient operation, with a control panel with full English mark beside the machine.
6 Centrifugal type, with anti-driction function, adjustable support to suitable different filling line.
7 Advantages of elimination of labor, improve the effectiveness
Product Paramenters
Item
High Speed Tin Can Sorter Machine Rotary Bottle Feeding Turntable Unscrambler
for Filling and Capping Machine
Power Supply
AC 220 V 50 ~ 60 Hz
Motor of turn-table
0~15 rpm
Turntable diameter
600mm, 800mm, 1000mm, 1200mm
Body of the bottle
20~100 mm
Heit of the bottle
30~200 mm
Reference Size
990*900*1040mm (Depends on bottle size)
Reference Weight
80KG (Depends on bottle size)
Details Images


Round Glass PET Plastic Bottle Unscrambler

1. It is used for many kinds of round bottles.
2. PLC control system, easy to operate.
3. Reverse the bottles automatically, no
need loading bottles by personnel.
4. The turnplate of this machine adopts inverter of limitless speed-adjust to slew, making all bottles enter into conveyor belt under the rotary tangential force.
5. Less labor, and raise production effciency. This bottle feeder can work just after switched easily operating.

Feeding Machine

Suitable for many size of empty glass bottle and POP can

Rotary Table

Easy structure and convenient operation, with a control panel

Bottle Turntable

Be able to connect to the complete filling Production line
Company Profile

Fillex Team


One-stop Solution

With systems from FILLEX for filling non-sparkling water, you can rely on our high quality and ideal hygienic conditions combined with maximum cost and energy efficiency. Whichever container shape you prefer - we will find the best solution for your requirements.


Customer Service

More than 60 exporting countries, serving more than 180 customers, such as Thailand, Myanmar, Russia, South Africa, Turkey, Argentina, USA, Canada, Mexico, Australia, etc.
We already have 3 branches: Indonesia, Dubai, Saudi Arabia.
Exhibition
Packing&Shipping
Our Services
Factory Layout Design
The Sample Service 1.We can send you the video of the running machine. 2.Your are welcome to come to visit our factory,and see the machine running. Customized Service 1.We can design the machine according your requirements,at the same time we will give you our prefessional suggestion,as you know we have been in this industry for many years. After-sales Service 1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly. 2. When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee untill they can operate the machine well. 3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4. We provide one year quality warranty，and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine. 5. Well-traned & experienced staff are to answer all your inquiries in English and Chinese. 6. 24 hours/365 days online technical service. 7. 12 Months guarantee and life-long technical support. 8. Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions. Quality Control We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
FAQ
Q1: Are you a trading company or a manufacturer? A1: We have our own factory for many years,can give u best service. Q2: What's your guarantee if we buy your machines? A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning. Q3: When can I get my machine after I paid? A3: We will deliver the machines on time as the date we agreed both side. Q4: How can I install my machine when it arrives? A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines. Q5: What's the delivery time? A5: 30-45 days after the T/T deposit or L/C. Q6: Do you provide customized service? A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
